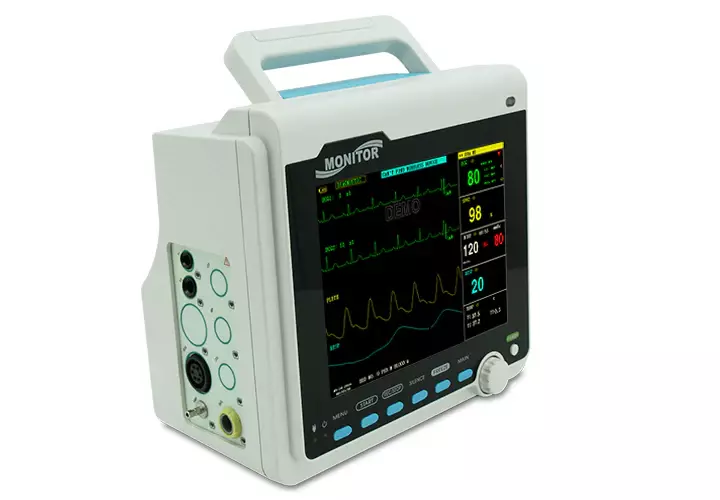

Product Overview: Advanced Multi-Parameter Patient Monitor
This advanced 8.4” color TFT patient monitor offers reliable, continuous monitoring across a wide range of care settings. With compatibility for adult, pediatric, and neonatal patients, it is ideal for bedside monitoring, transport, and critical care environments. Compact yet powerful, it supports essential monitoring parameters such as ECG, NIBP, SpO₂, and optional EtCO₂, with strong data management capabilities and network integration.
Main Features
8.4” High-Resolution Color TFT LCD Display
Applicable for adults, pediatrics, and neonates
Multilingual interface (Chinese, English standard; optional: French, German, Italian, Dutch, Turkish, etc.)
Customizable display modes including big-character interface and optional waveform/data color settings
Storage Capacity:
480-hour trend data
40-second full-disclosure holographic waveform review
7-lead ECG displayed simultaneously
Defibrillation-proof and anti-electrosurgical interference (requires special leads)
Digital SpO₂ technology with strong anti-motion and low perfusion performance
NIBP review function with storage of up to 400 measurements
Built-in rechargeable battery for uninterrupted use
Wireless & Wired Network Connectivity with support for CONTEC central monitoring system
Audible and visual alarms with fully adjustable alarm limits
Portable and rugged design for transport and bedside use
Monitoring Capabilities & Technical Specifications
ECG Monitoring
Lead Type: 5-lead (RA, LA, RL, LL, V)
Sweep Speeds: 12.5mm/s, 25mm/s, 50mm/s
S-T Segment Detection: Yes
Arrhythmia Analysis: Yes
Accuracy: ±bpm or ±%, whichever is greater
Protection: Withstands 4000VAC/50Hz (electrosurgical & defibrillation-safe)
Alarms: Audible & visual, recallable alarm events
NIBP (Non-Invasive Blood Pressure)
Measurement Method: Oscillometry
Modes: Manual / Automatic / STAT
Measurement Units: mmHg / kPa (selectable)
Measurement Types: Systolic, Diastolic, Mean
Over-Pressure Protection: Yes
SpO₂ (Pulse Oximetry)
Range: 0–100%
Accuracy: ±2 digits (70–100%), <70% unspecified
Anti-motion and low perfusion tolerance: Yes
EtCO₂ (Capnography – Optional)
Measurement Mode: Mainstream
Range: 0–99 mmHg
Accuracy: High-precision CO₂ concentration measurement
Apnea Alarm: Yes
