Contec SP10 USP Spirometer

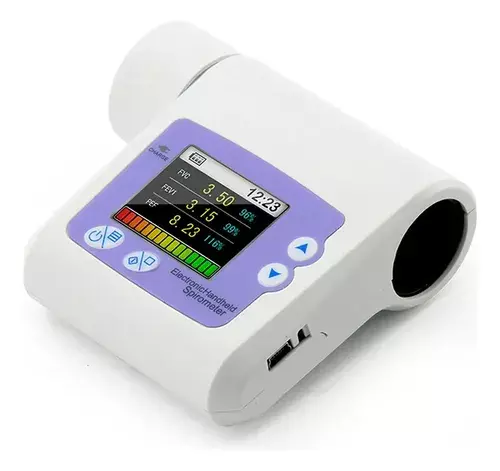

Contec SP10 Spirometer – Portable Lung Function Testing Device

The Contec SP10 Spirometer is a compact, handheld solution for evaluating pulmonary function in clinical and hospital environments. Designed to deliver accurate and efficient respiratory assessments, it uses advanced infrared technology to measure critical lung parameters. With its intuitive interface, rechargeable battery, and real-time graph display, the SP10 is ideal for routine respiratory screening and ongoing patient monitoring.

Key Benefits:

• Measures key respiratory values including:

  • Forced Vital Capacity (FVC)

  • Forced Expired Volume in 1 second (FEV1)

  • FEV1/FVC ratio (FEV1%)

  • Peak Expiratory Flow (PEF)

  • FEF25, FEF75, and FEF25–75

• Graphical display of flow-volume and volume-time curves

• Trend charts for patient monitoring over time

• Data memory with options to delete, review, and upload to PC

• Calibration function ensures consistent accuracy

• Smart alerts for abnormal volume/flow readings

• Auto power-off after 1 minute of inactivity

• Rechargeable lithium battery with power indicator

Applications:

• Routine pulmonary function screening in hospitals and clinics

• Monitoring of chronic respiratory conditions

• Evaluation of treatment effectiveness in respiratory therapy

• Baseline testing in occupational health programs

Directions for Use:

Attach the included mouthpiece and optional nose clip, then power on the device. Follow on-screen instructions to perform a breathing test. The results—including volume, flow, and graphical data—are instantly displayed on the 1.8” color LCD screen. Data can be saved, reviewed, or uploaded to a PC via the included USB cable.

Technical Specifications:

• Volume Range: 0–10L | Accuracy: ±3% or 0.05L

• Flow Range: 1–16L/s | Accuracy: ±10% or ±0.3L/s

• Display: 1.8" Color LCD (160×128 resolution)

• Power: 3.7V rechargeable lithium battery

• Dimensions: 97mm × 89mm × 36mm

• Weight: 150g

Included Accessories:

• USB data cable

• Mouthpiece

• Power adapter

• User manual

• CD with PC software

• Optional nose clip

The Contec SP10 Spirometer is a reliable and user-friendly tool for fast, accurate lung function testing—empowering healthcare professionals to detect and monitor respiratory conditions with confidence.
