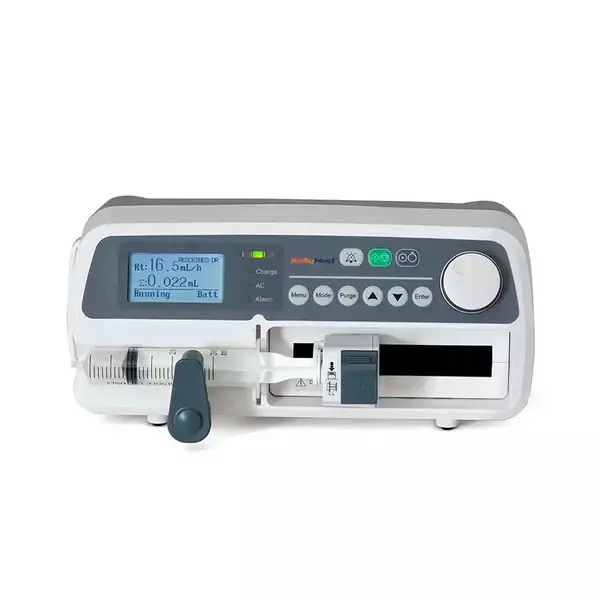

KellyMed KL-602 Syringe Pump
Advanced Infusion Control for Diverse Clinical Applications
The KL-602 Syringe Pump by KellyMed is engineered to deliver precise and reliable medication infusion, making it suitable for use in hospitals, ICUs, NICUs, and emergency care settings.
Key Features:
Syringe Compatibility: Supports standard syringes of sizes 10, 20, 30, and 50/60 ml.
Automatic Detection: Automatically identifies syringe size to ensure accurate infusion rates.
Infusion Modes: Offers multiple modes including flow rate (ml/h), time-based, and body weight-based dosing (mg/kg/min, μg/kg/h, etc.).
Flow Rate Range:
10 ml syringe: 0.1–400 ml/h
20 ml syringe: 0.1–600 ml/h
30 ml syringe: 0.1–900 ml/h
50/60 ml syringe: 0.1–1300 ml/h
Bolus Function: Adjustable bolus rate between 400–1300 ml/h.
Accuracy: Delivers fluids with ±2% precision.
Keep Vein Open (KVO): Automatic transition to KVO mode at 0.1–1 ml/h after infusion completion.
Safety Alarms: Visual and audible alarms for occlusion, near-empty syringe, end of program, low battery, AC power off, motor malfunction, and system errors.
Drug Library: Preloaded with over 60 drugs for quick selection and dosing accuracy.
Wireless Management: Optional integration with infusion management systems for centralized control.
Stackable Design: Can be stacked up to 4 or 6 units for multi-infusion setups.
Technical Specifications:
Model: KL-602
Syringe Sizes: 10, 20, 30, 50/60 ml
Volume to Be Infused (VTBI): 0.1–9999 ml
Flow Rate Increments:
<100 ml/h: 0.1 ml/h increments
≥100 ml/h: 1 ml/h increments
Power Supply: AC 110/230 V, 50/60 Hz
Battery: Rechargeable 9.6 V; up to 7 hours of operation at 5 ml/h
Dimensions: 314 × 167 × 140 mm
Weight: 2.5 kg
Safety Classification: Class II, Type CF
