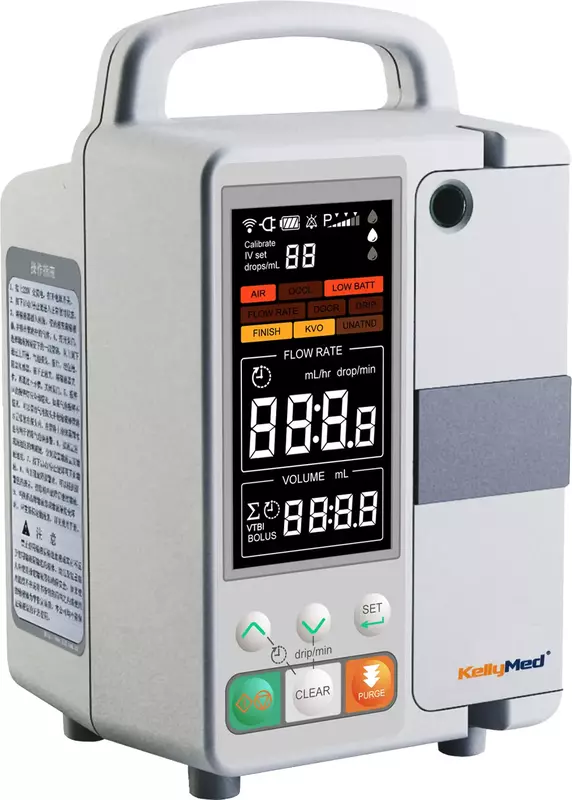

KellyMed KL-8052N Volumetric Infusion Pump
Advanced Infusion Control for Diverse Clinical Applications
The KL-8052N is a high-precision infusion pump suitable for adult, pediatric, and neonatal patients. Its compact design, advanced features, and user-friendly interface make it ideal for use in hospitals, ICUs, NICUs, and emergency care settings.
Key Features:
Built-in Thermostat (30–45 °C): Warms IV tubing to enhance infusion accuracy.
Universal IV Set Compatibility: Compatible with standard IV sets, ensuring versatility.
High Accuracy: Delivers fluids with ±3% precision.
Real-Time Monitoring: Displays infused volume, bolus rate, bolus volume, and KVO rate on a large LCD screen.
Adjustable Flow Rate: 0.1–1500 ml/h in 0.1 ml/h increments.
Bolus Function: 100–1500 ml/h in 1 ml/h increments; bolus volume adjustable from 1–20 ml.
Keep Vein Open (KVO) Rate: 0.1–5 ml/h in 0.1 ml/h increments.
Infusion Modes: Supports ml/h, drops/min, and time-based modes.
Safety Alarms: Visual and audible alarms for occlusion, air-in-line, door open, program end, low battery, AC power off, motor malfunction, and system errors.
Anti-Free-Flow Mechanism: Prevents unintended fluid flow when the door is opened.
Twin CPU Design: Enhances operational safety and reliability.
Battery Backup: Up to 5 hours of operation at 30 ml/h; includes battery status indicator.
User-Friendly Interface: Allows flow rate adjustments without stopping the pump; includes purge and bolus functions.
Technical Specifications:
Pumping Mechanism: Curvilinear peristaltic
Flow Rate Range: 0.1–1500 ml/h (0.1 ml/h increments)
Bolus Volume: 1–20 ml (1 ml increments)
Accuracy: ±3%
VTBI (Volume to Be Infused): 1–9999 ml
KVO Rate: 0.1–5 ml/h (0.1 ml/h increments)
Alarms: Occlusion, air-in-line, door open, end program, low battery, end battery, AC power off, motor malfunction, system malfunction, standby
Power Supply: AC 110/230 V, 50–60 Hz; rechargeable battery (9.6 ± 1.6 V)
Battery Life: Up to 5 hours at 30 ml/h
Operating Conditions:
Temperature: 10–40 °C
Humidity: 30–75%
Atmospheric Pressure: 700–1060 hPa
Dimensions: 174 × 126 × 215 mm
Weight: 2.5 kg
Safety Classification: Class I, Type CF
