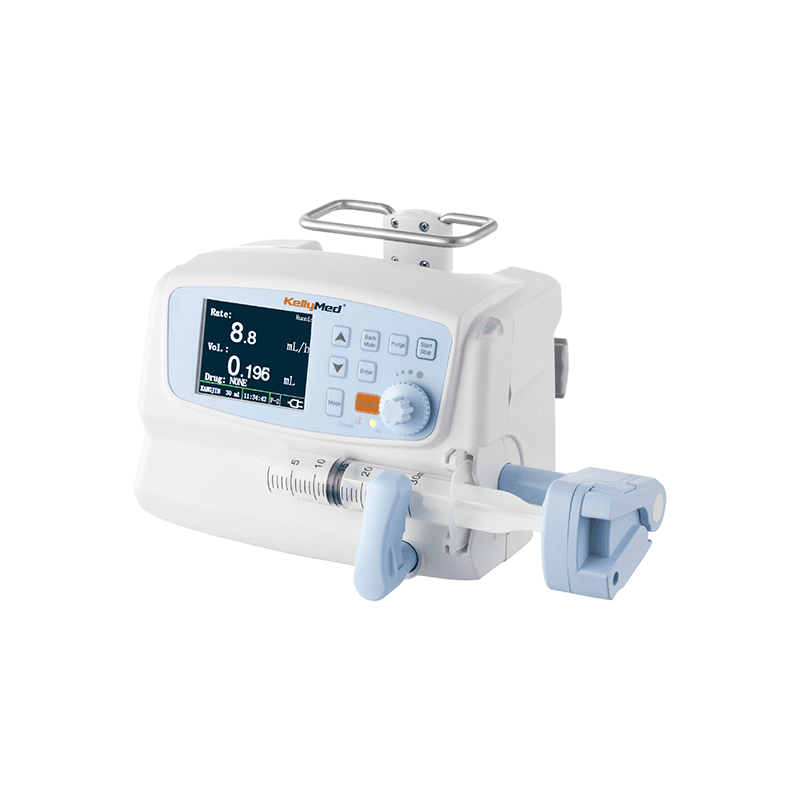

KellyMed KL-605T Syringe Pump
Overview: The KL-605T Syringe Pump offers high-precision infusion capabilities, making it suitable for various medical and laboratory settings. It ensures accurate delivery of fluids and medications, enhancing patient safety and treatment efficacy.
Key Features:
Syringe Compatibility: Supports standard syringes of sizes 5, 10, 20, 30, and 50/60 ml.
Flow Rate Range:
5 ml syringe: 0.1–100 ml/h
10 ml syringe: 0.1–300 ml/h
20 ml syringe: 0.1–600 ml/h
30 ml syringe: 0.1–800 ml/h
50/60 ml syringe: 0.1–1200 ml/h
Bolus Rate: Adjustable to match the flow rate for each syringe size.
Accuracy: ±2% (mechanical accuracy ≤1%).
Infusion Modes: Includes flow rate (ml/min, ml/h), time-based, and body weight-based dosing (mg/kg/min, mg/kg/h, etc.).
Keep Vein Open (KVO) Rate: 0.1–1 ml/h (in 0.01 ml/h increments).
Alarms: Features occlusion, near-empty syringe, end of program, low battery, AC power off, motor malfunction, system malfunction, pressure sensor error, syringe installation error, and syringe drop-off alarms.
Additional Functions: Real-time infused volume display, automatic syringe identification, mute key, purge, bolus, anti-bolus, system memory, history log, key lock, and dynamic pressure system (DPS) for detecting pressure variations in the extension set.
Battery Life: Approximately 8 hours at 5 ml/h.
Stackability: Can be stacked up to 4 or 6 units for efficient use of space.
Wireless Management: Supports central monitoring via an Infusion Management System.
Drug Library: Preloaded with over 60 drugs for quick selection and dosing accuracy.
Power Supply: AC 110/230 V, 50/60 Hz; 20 VA.
Dimensions: 245 × 120 × 115 mm.
Weight: 2.5 kg.
Safety Classification: Class II, Type BF.
Applications: The KL-605T Syringe Pump is ideal for use in:
Intensive Care Units (ICU)
Neonatal Intensive Care Units (NICU)
Operating Rooms
Emergency Departments
Laboratory Settings
Veterinary Clinics
