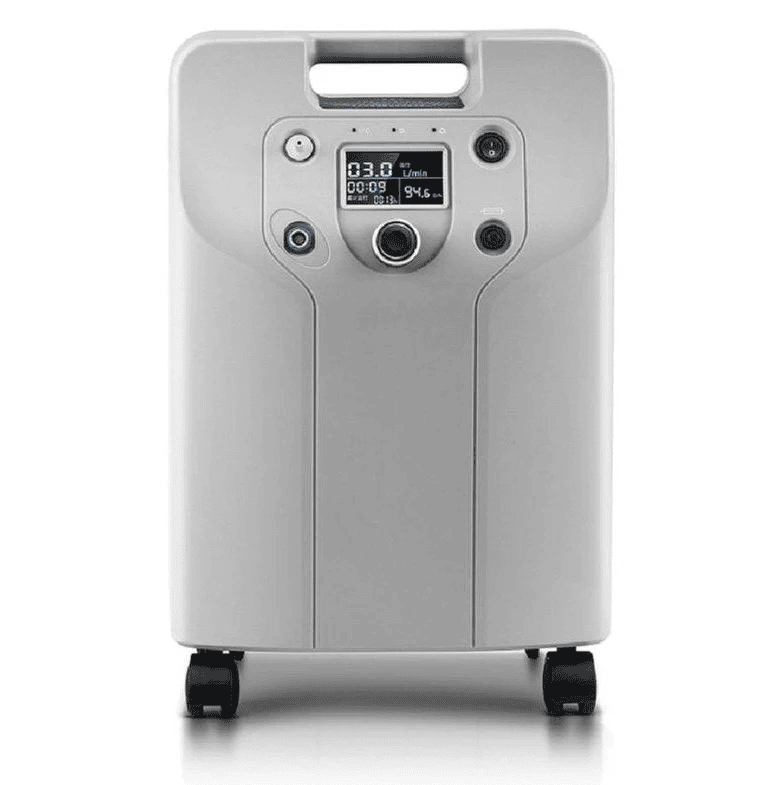

Oxygen Concentrator VE3 – 3L (Nebulizer / Alarm)
Description:
The VE3 3L Oxygen Concentrator is a compact, high-performance unit designed for both home and clinical oxygen therapy. With advanced safety alarms, real-time oxygen purity monitoring, and optional SpO₂ sensing, it offers an ideal solution for reliable and continuous oxygen support. Its integrated nebulizer function further enhances its versatility for respiratory care.
Key Features:
Adjustable Flow Rate: 0.5 – 3 L/min
Oxygen Purity: 93% ± 3%, with real-time purity display
Electronic Flow Meter: Fine-tuned adjustments in 0.1 L/min intervals
Integrated Nebulizer: Particle size ≤5μm for effective aerosol therapy
SpO₂ Sensor (Optional): Real-time blood oxygen level monitoring
Noise Level: Ultra-quiet operation ≤45 dB
Safety Alarms:
– Power failure
– Low oxygen purity
– Overheat
– High/low pressure
– Pressure failure
Technical Specifications:
Power Consumption: ≤250 W
Voltage: AC 220V / 100V ±10%, 50/60Hz ±1
Outlet Pressure: 0.04 – 0.08 MPA
Dimensions: 191 × 318 × 520 mm (L × W × H)
Net Weight: 11 kg
Gross Weight: 12 kg
Standard & Optional Functions:
Total/Present working hours display
Timing function
Nebulizer functionality
Real-time oxygen purity display
Optional SpO₂ sensor integration
Applications:
Home oxygen therapy
Post-operative recovery
Chronic respiratory illness support
Nebulized medication delivery
This model is highly efficient, user-friendly, and offers premium features in a portable and affordable design—ideal for both professional and home care settings.
